Shipping a high-capacity lithium-ion battery (UN3480) is a highly regulated process. Because these packs contain significant energy, they are classified as Class 9 Dangerous Goods.
If you fail to follow DOT (Department of Transportation) or IATA regulations, you risk heavy fines, rejected shipments, or—worst case—a thermal runaway fire. This guide covers the legal requirements for shipping e-bike batteries safely via ground.
⚡ Quick Compliance Checklist
- ✅ State of Charge (SoC): Must be at or below 30%.
- ✅ Packaging: Must use a UN-Rated 4G fiberboard box.
- ✅ Terminal Protection: Terminals must be insulated (taped or capped).
- ✅ Labeling: Must display a Class 9 Lithium Battery Diamond and UN3480 ID.
- ✅ Carrier: Must be shipped via Ground (Air shipping is restricted for individuals).
1. Preparation: The 30% State of Charge (SoC) Rule
Safety begins before the battery hits the box. Regulations for UN3480 shipments require the battery to be at 30% capacity or less.
- Why? Lower voltage significantly reduces the risk of a "thermal runaway" chain reaction if the battery is punctured or crushed.
- How to check: Use your e-bike’s onboard display or a multimeter. If the battery is full, ride the bike or use a professional discharger to bring it down to the safety threshold.
2. Advanced Packaging: The "Box-in-Box" Method
Standard retail or moving boxes are not legal for shipping standalone lithium batteries. You need a UN-certified 4G box, which is engineered to withstand specific drop and pressure tests.
Step-by-Step Packing:
- Insulate Terminals: Use non-conductive electrical tape or plastic caps. If a stray piece of metal touches both terminals during transit, it will short-circuit.
- Inner Packaging: Wrap the battery in anti-static bubble wrap or a sealed plastic bag.
- The Cushion: Place the battery in the UN-rated box. Fill all voids with non-combustible cushioning (like cardboard inserts or foam). The battery must not move when the box is shaken.
- Seal: Use reinforced pressure-sensitive tape.

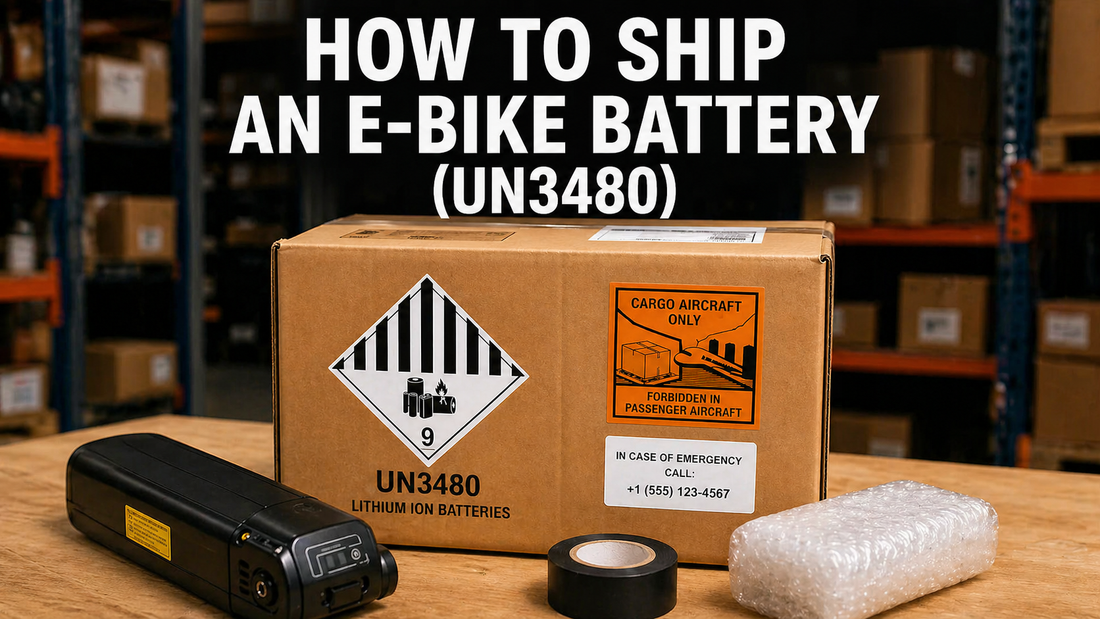

3. Mandatory Labels & Documentation
Your package must communicate its contents clearly. Place all labels on one side of the box, ensuring they are flat and not wrapped over edges.
- Class 9 Hazard Label: The black-and-white striped "diamond" symbol.
- UN3480 Mark: Identifies the package as "Lithium Ion Batteries."
- Cargo Aircraft Only (CAO): Ensures the battery stays on the ground or dedicated cargo freighters.
- Emergency Contact: You must provide a 24/7 phone number for someone who can provide technical info in case of an incident.
4. Choosing the Right Carrier
You cannot drop a UN3480 package in a standard drop box or at a retail "pack and ship" storefront.
| Carrier | Best For | Requirement |
|---|---|---|
| UPS Ground | Most E-Bike users | Requires a Hazmat-contracted account. |
| FedEx Ground | Commercial shippers | Requires specific Hazmat certification. |
| Specialized Couriers | One-off shipments | Services like BikeFlights handle the logistics. |
Pro Tip: If you don’t have a hazmat shipping contract, visit a Local Bike Shop (LBS). Many shops have existing accounts and proper UN-rated packaging on hand to help you ship safely.
5. Common Pitfalls to Avoid
- Reusing Old Boxes: If a box has old "Limited Quantity" or "Fragile" stickers, carriers will reject it.
- Damaged Batteries: NEVER ship a battery that is swollen, dented, or cracked. It is illegal to ship damaged lithium batteries via standard carriers.
- Incomplete Paperwork: Ensure your Bill of Lading explicitly mentions "Hazardous Materials."
